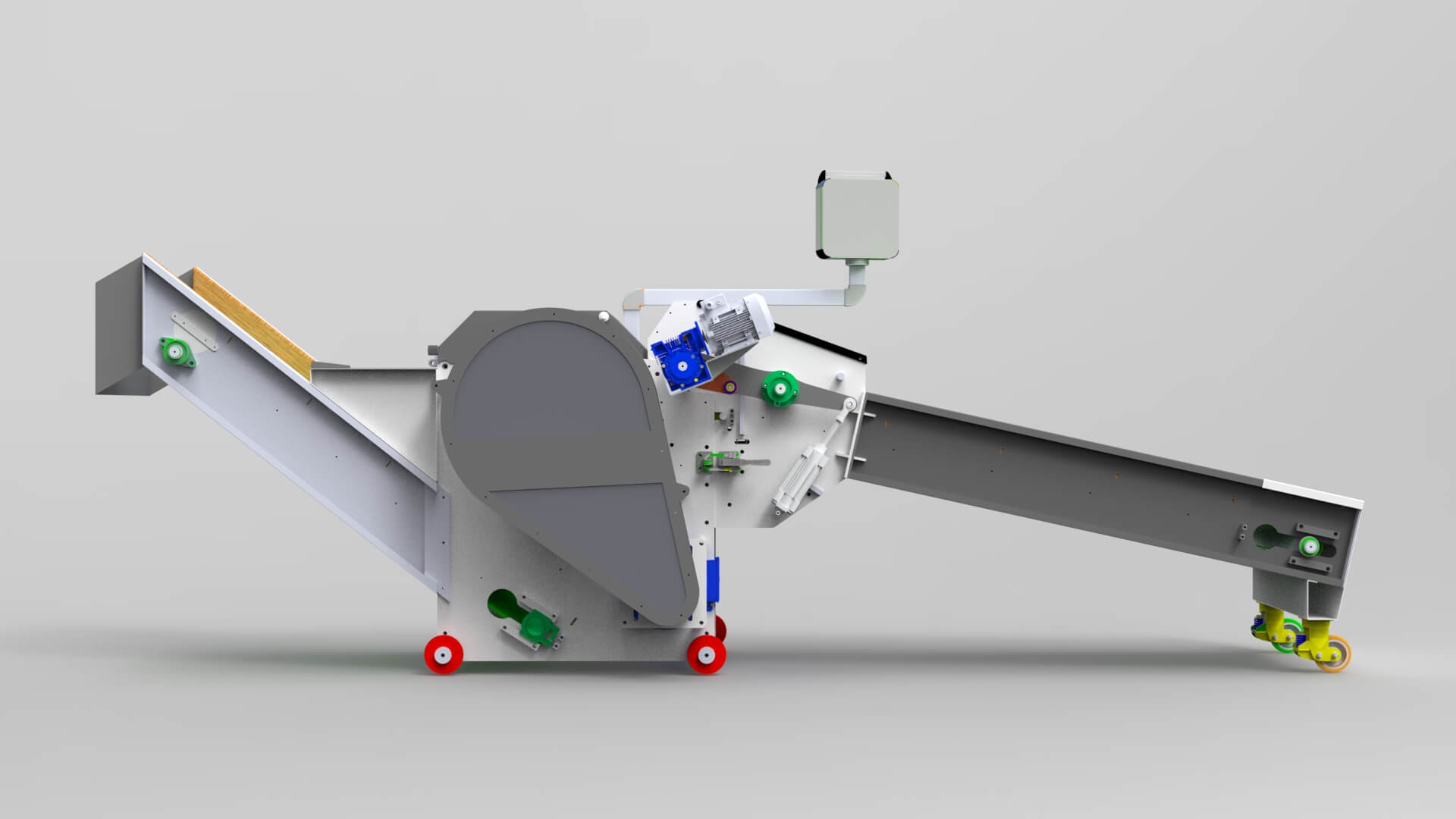

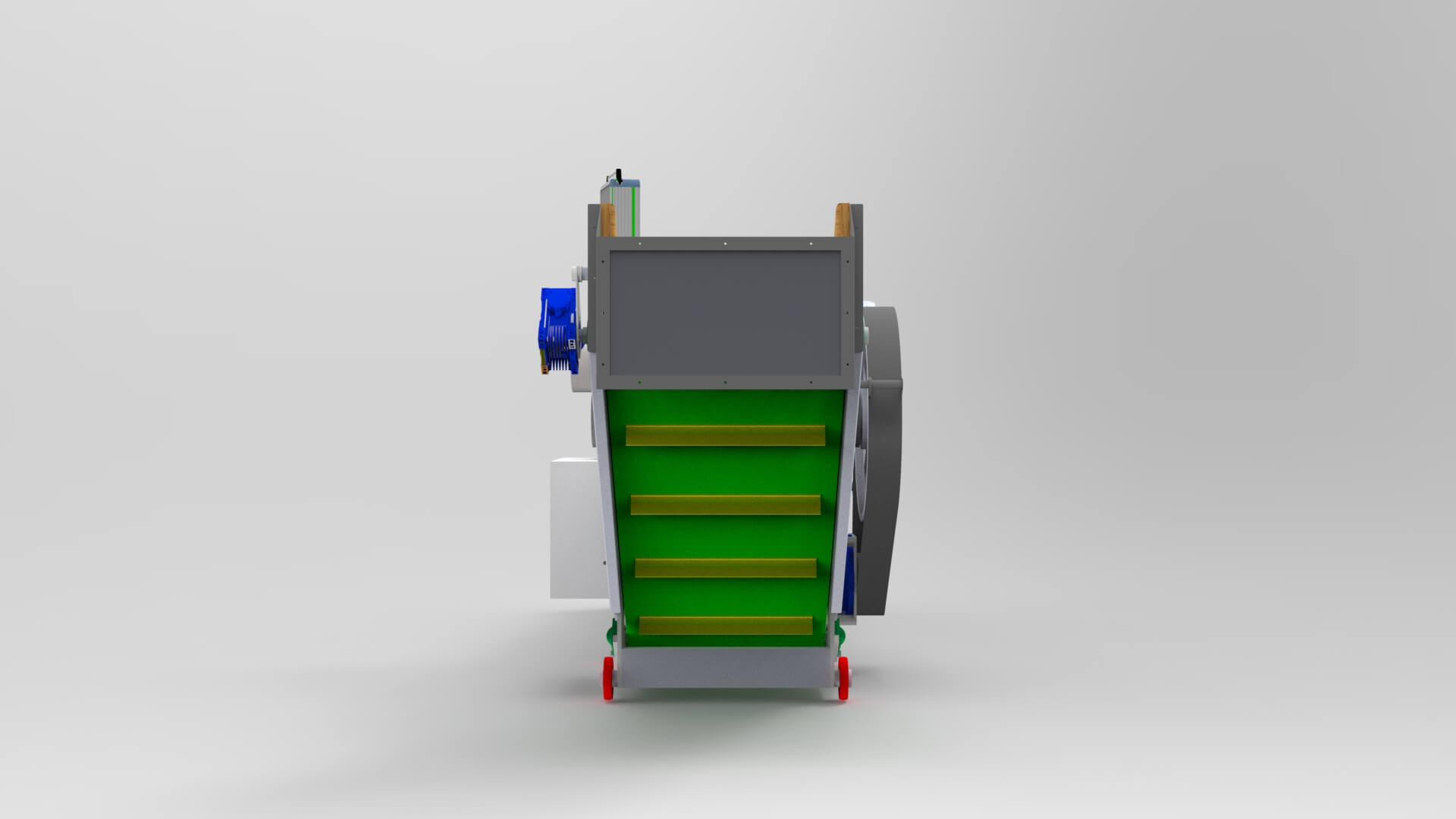

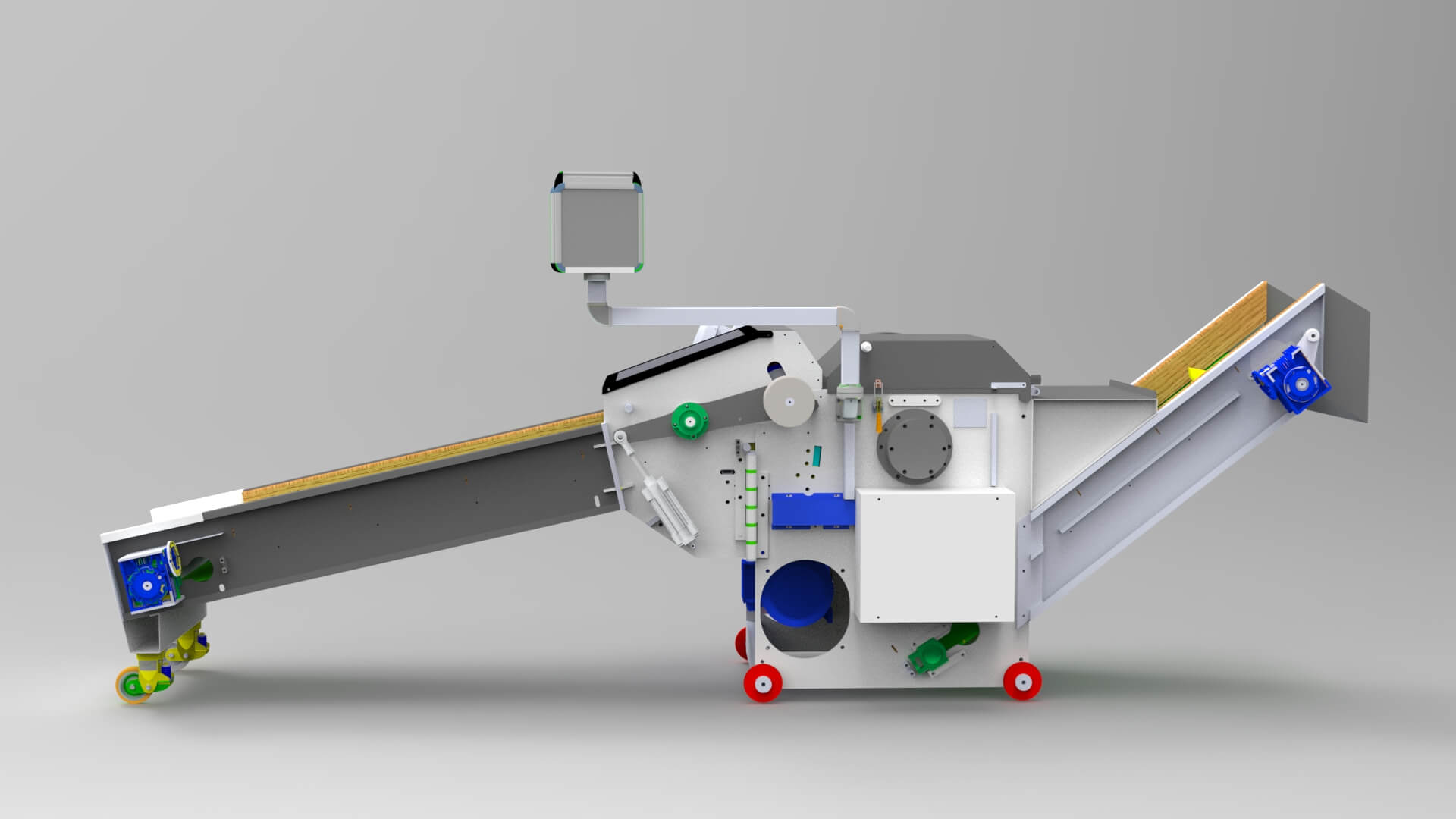

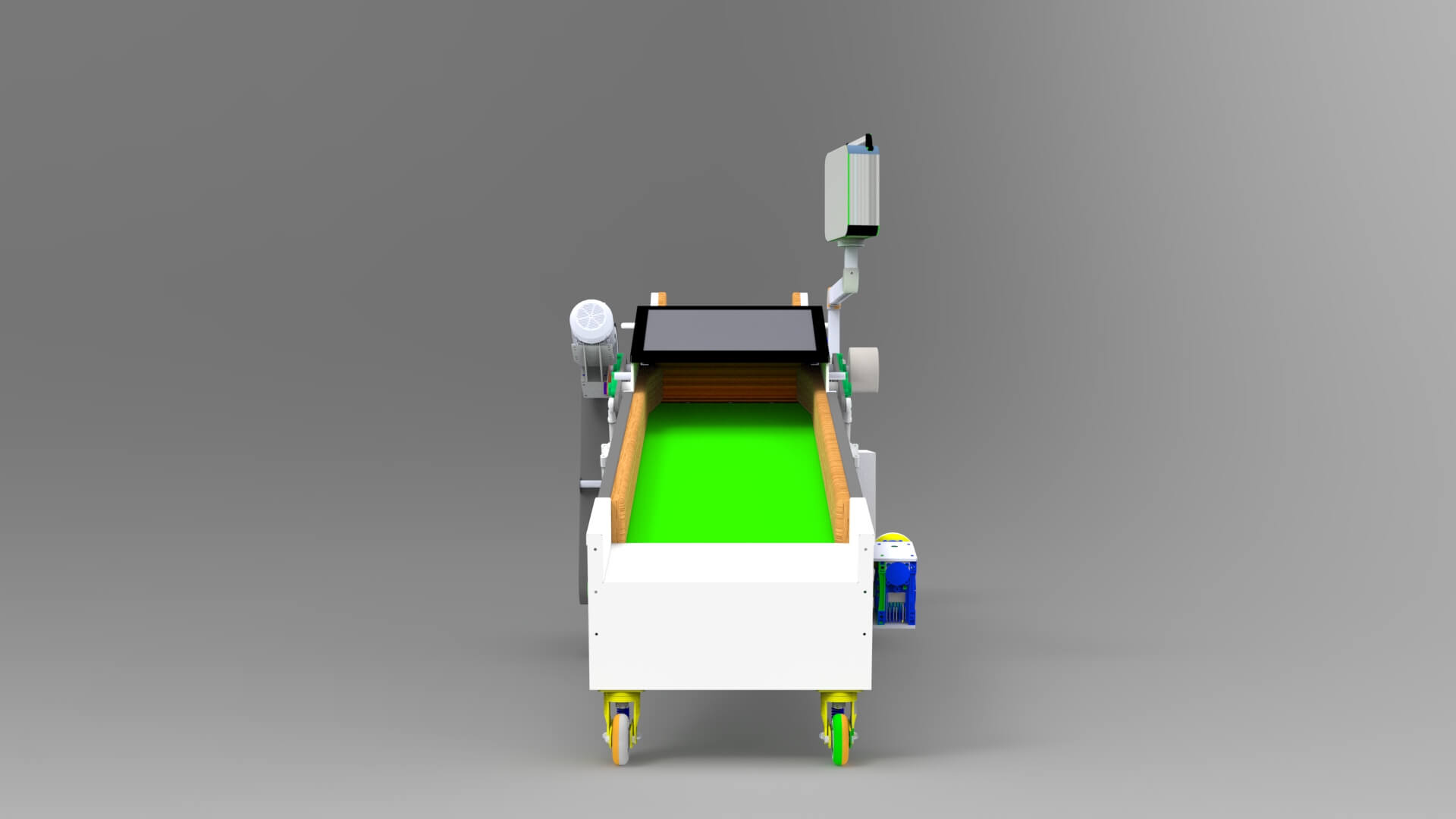

Reinforced Guillotine Cutting Machine

Our machines are mainly used to cut textile waste before recycling. These cut materials are used for nonwoven fabric or fiber recycling.


Waste fabric, PP, PES, PA fiber, cotton, wool etc. natural fibers, fiberglass, aramid etc. fibers can be easily cut to the desired size with our machines.


The knives we use in the machine are made of the highest quality high chrome steel and machined from the block. Therefore, it cuts for a very long time without the need for sharpening.


A special feed table design totally eliminates penetration of foreign material between the conveyor belt and the sides.


Compression and traction rolls which draw the material into the cutting machine are mobile in order to ensure constant pressure on the material, whatever the thickness. Roll pressure and gap adjustment only takes seconds, ensuring perfect infeed regardless of the type or shape of the material. The small diameter grooved roll nearest the knives ensures that the materials are held very close to the knives, facilitating the cutting of short material.


All turning movements are ball or roll bearing mounted for long life, smooth operation without excessive wear on the shafts, and minimum maintenance.


All parts are designed for maximum standardisation, to guarantee reliability and interchangeability. Machined on the most up-to-date equipment, our products are competitively priced.


Cutting width : Up to 750 mm
Cutting length : Cen be arranged according to your request


Cutting Speed

With 2 blades 397 cuts/min
With 3 blades 596 cuts/min
With 4 blades 795 cuts/min
Total installed power : 14.3 kW
